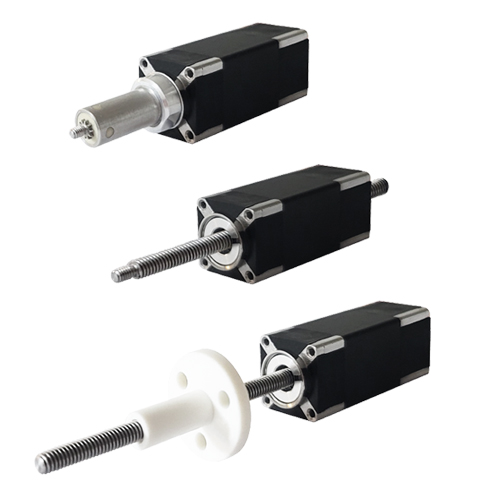

NEMA6 Stepper Lead Screw Linear Actuators

The NEMA 6 is our smallest hybrid linear actuators.

This compact unit can be integrated into various

Applications to provide precise linear positioning while

occupying less than 1 in2 of mouting footprint and
providing up to 44.5N of continuous thrust.


The Working Type for the Different Application Demand:

E: External Linear

N: Non-captive

C: Captive

K: Kaptive


Motor Characteristics:

Motor CodeVoltage
(V)		Current
(A)		Resistance
(Ω)		Inductance
(mH)		Weight
(g)		Lead
Wire No		Length
(mm)
6-306.60.3223.650430
6-282.450.54.91.548428
6-385.50.511255438

Available Lead Screw and Travel per Step:

Lead Code Screw Dia.
(inch)		Screw Dia.
(mm)		Lead
(inch)		Lead
(mm)		Travel
Per Step
@ 1.8 deg
(mm)
AF0.1383.50.0120.30480.0015
AA0.1383.50.0240.60960.003
B0.1383.50.0481.21920.0061
G0.1383.50.07920.01
M0.1383.50.15840.02
T0.1383.50.31580.04



NEMA 6  Stepper Lead Screw Linear Actuators (External Type):


NEMA6 Stepper Lead Screw Linear Actuators Speed Thrust Curves:

 Options for screw end machining:


Catalog for download

More Information on detail, please feel free to contact me
