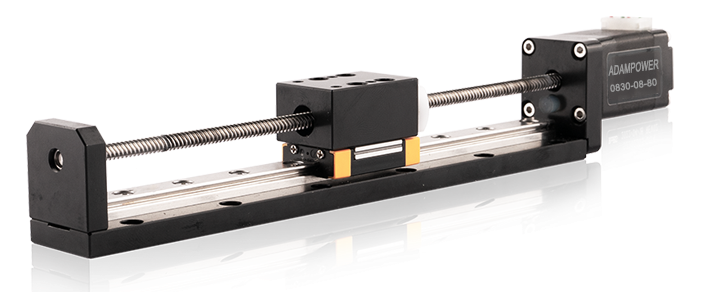

Nema8 Linear Actuator, 20 mm Linear Actuator

Nema8 Linear Actuator
$55.00
*
*
*
Qty:
(This product has a limit set to 50000 item(s) per order)


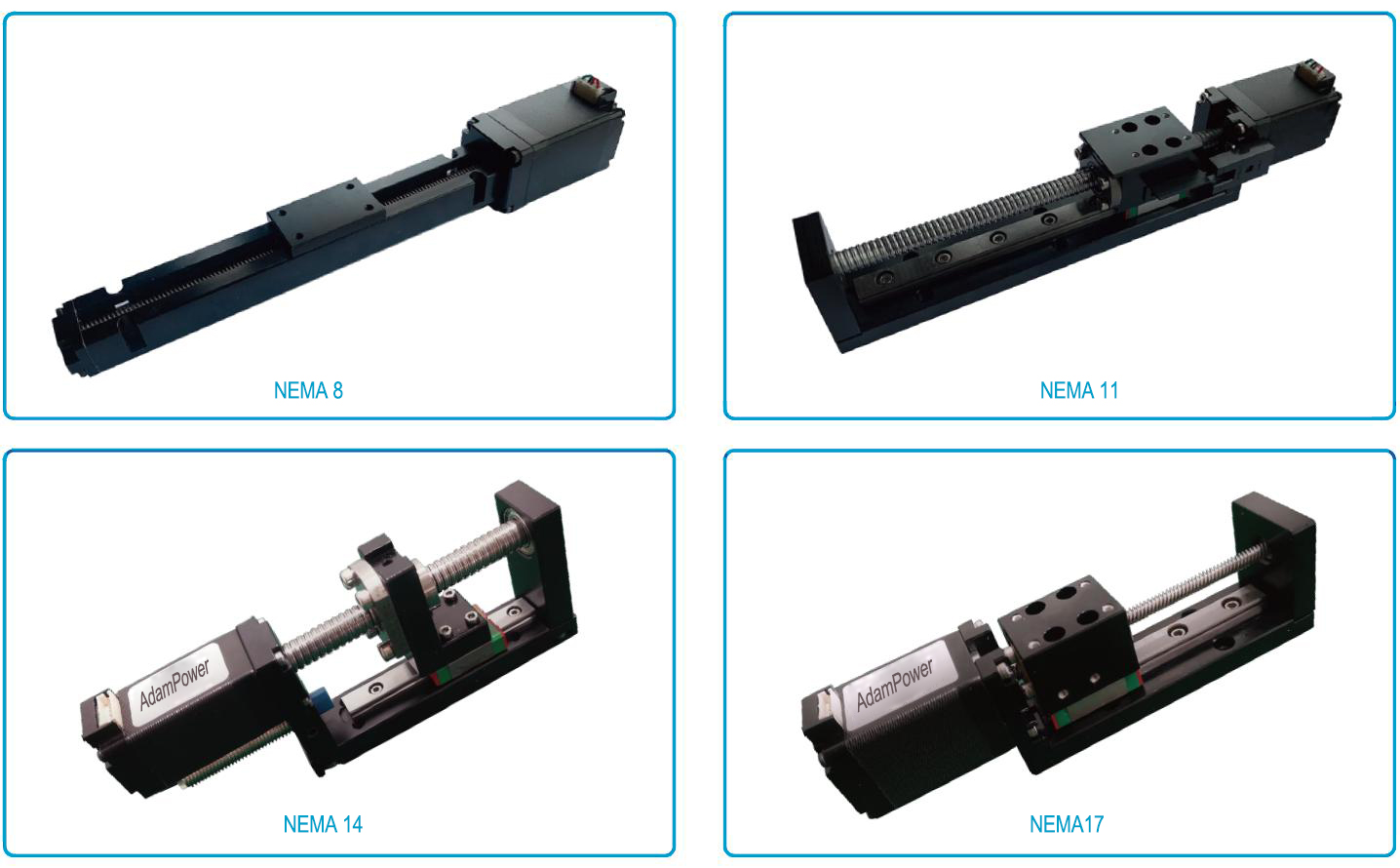

Size:
NEMA6, NEMA8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA23, NEMA34
14mm, 20mm,    28mm,    35mm,    42mm,   57mm,       60mm,    86mm

Stepper
0.001524mm~0.16mm

Performance
Maximum thrust up to 240kg, low temperature rise, low vibration, low noise,
long life (up to 5 million cycles), and high positioning accuracy (up to ±0.005 mm)

Application
Medical diagnostic equipment, life science instruments, robots, optical equipment,
analytical instruments, semiconductor equipment, communication equipment, automation equipment

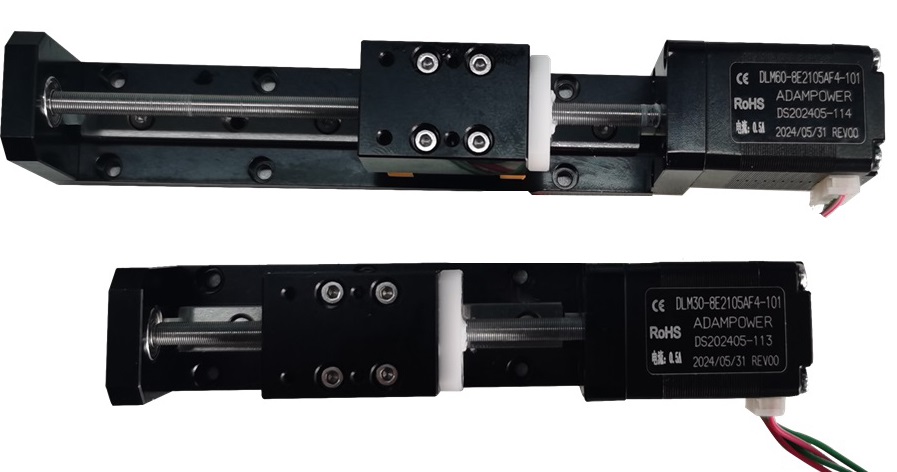

NEMA8 Lead Screw Linear Actuators

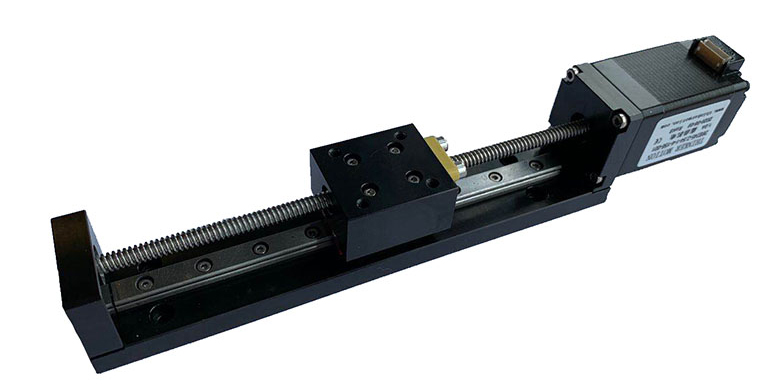

Linear Module, Linear Slider

Motor Type Bipolar stepper
Step Angle 1.8°
Voltage (V) 2.5 / 6.3
Current (A) 0.5
Resistance (Ohms) 5.1 / 12.5
Inductance (mH) 1.5 / 4.5
Lead Wires 4
Motor Length (mm) 30 / 42
Stroke (mm) 30 / 60 / 90
Ambient Temperature -20℃ ~ 50℃
Temperature Rise 80K Max.
Dielectric Strength 1mA Max. @ 500V, 1KHz, 1Sec.
Insulation Resistance 100MΩ Min. @500Vdc


Motor Characteristics:

08S/08D:
MotorPhase
voltage
[V]
Phase
Current
[A]
Phase
Resistance
[Ω]
Phase
Inductance
[mH]
Lenght
[mm]
Number
of lead
Wires
08S2.50.55.11.527.24
08D4.40.58.82.738.14

0830/0842:

Motor

Voltage/

Phase

(V)

Current/

Phase

(A)

Resistance/

Phase

(Ω)

Inductance/

Phase

(mH)

Number of

Lead Wires

Rotor Inertia

(g.cm2)

Motor Weight

(g)

Motor Length L

(mm)

0830

2.5

0.5

5.1

1.5

4

2

50

30

0842

6.3

0.5

12.5

4.5

4

3

80

42

Available Lead Screw and Travel per Step:

Diameter (mm)

Lead (mm)

Step (mm)

Power off self-locking force (N)

3.5

0.3048

0.001524

80

3.5

1

0.005

40

3.5

2

0.01

10

3.5

4

0.02

1

3.5

8

0.04

0

3.5

Customized size

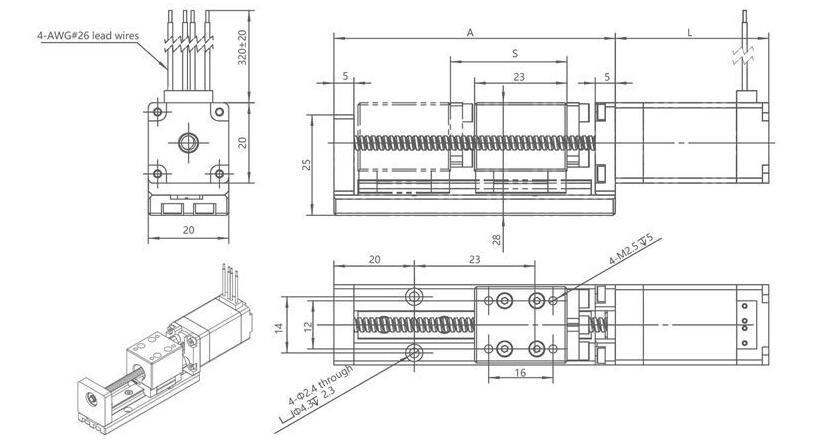

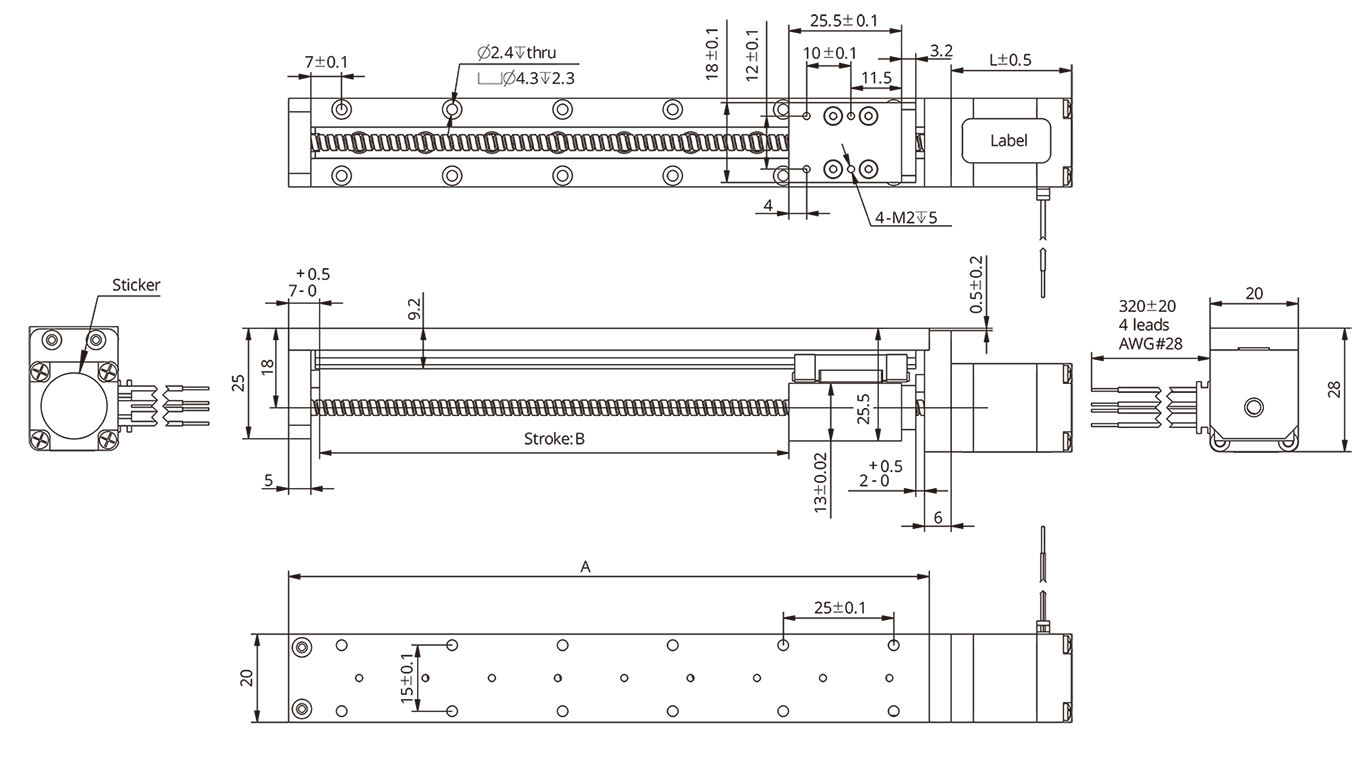

08S/08D Linear Actuator outline drawing:

Stroke B (mm)20406080100120150Size can be Customized
Dimension A (mm)6080100120140160190


0830/0842 Linear Actuator outline drawing:

Stroke S (mm)

30

60

90

Size can
be customized

Dimension A (mm)

70

100

130

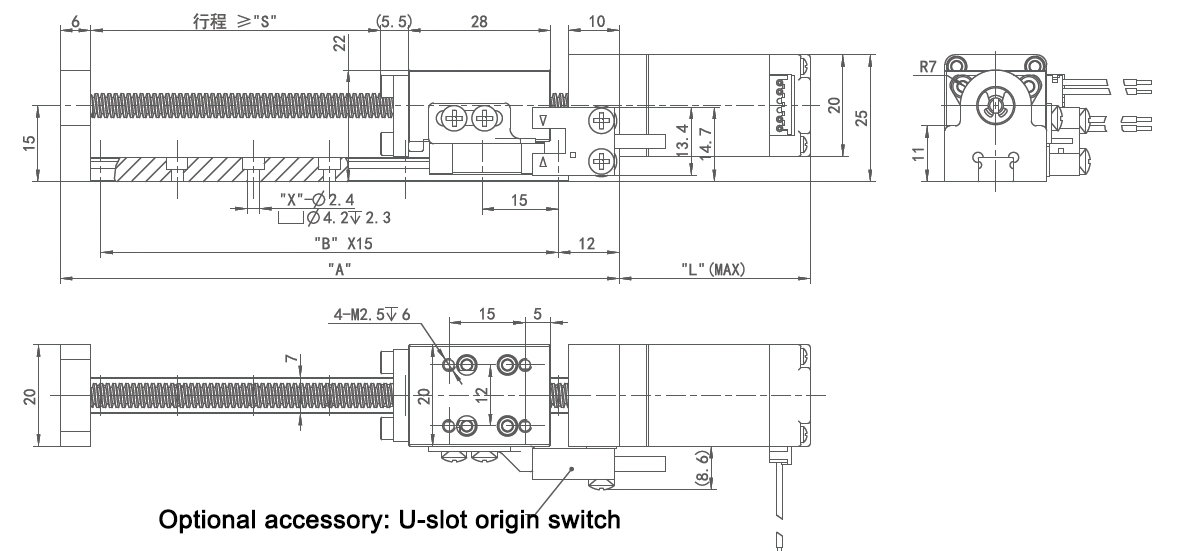

Customized NEMA8 Linear with origin switch outline drawing:


More Information on detail, please feel free to contact me
